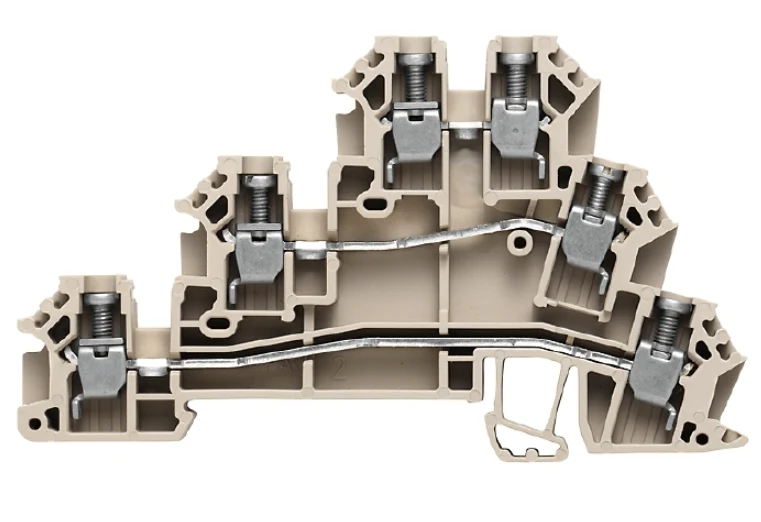

Weidmuller 1784180000 DLD 2.5 Double-Deck Terminal 2.5mm2

The Weidmuller 1784180000 DLD 2.5 is a double-deck terminal block with two independent connection levels on a single DIN rail position, rated for 2.5mm2 conductors. It halves the DIN rail space required for two-circuit installations.

Technical specifications:

• Part number: 1784180000
• Model: DLD 2.5
• Levels: 2 (independent)
• Max conductor: 2.5mm2
• Mounting: DIN rail

Applications:

• Space-saving two-circuit terminal blocks in control panels
• Sensor supply and signal wiring on a single DIN rail position

Also known as: Weidmuller 1784180000, DLD 2.5, double-deck terminal 2.5mm2, two-level terminal block.
