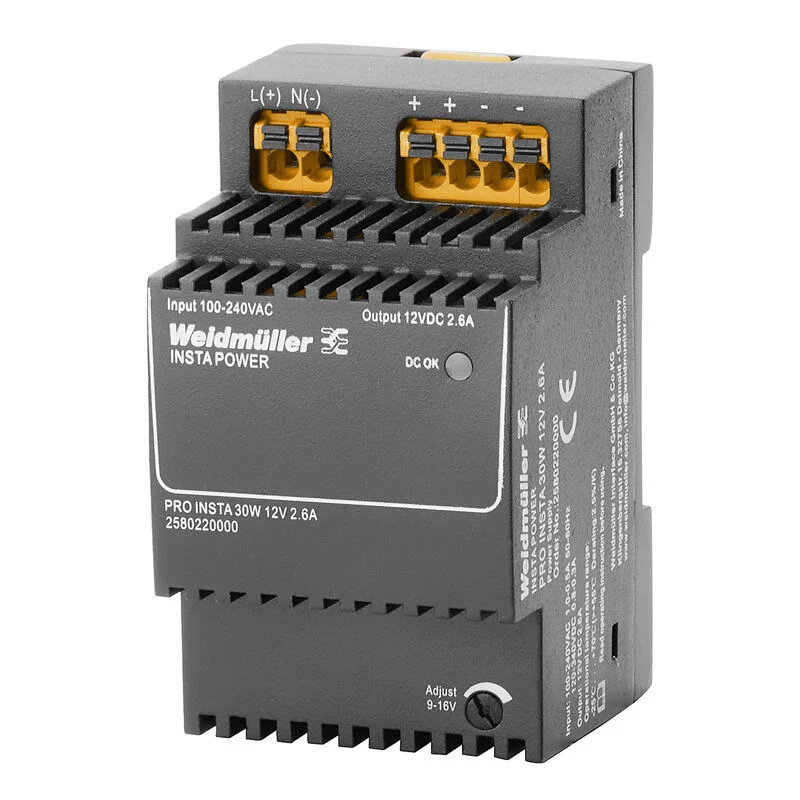

Weidmuller 2580220000 PRO INSTA Power supply switch 12V

The Weidmüller PRO INSTA 30W 12V 2.6A (order no. 2580220000) is a single-phase switch-mode power supply designed for signal and telecommunications systems and automation systems with a low power requirement. It features a wide AC/DC input voltage range and DIN rail mounting, making it suitable for a broad range of industrial applications.

• Output voltage: 12V DC ± 1%, adjustable 9–16V via front potentiometer
• Output power: 30W; maximum output current: 2.6A
• Continuous output current: 2.6A @ 55°C
• Input voltage range: 85–264V AC (derating at 100V AC) or 120–340V DC; frequency: 45–65Hz
• Efficiency: 85%
• Operating temperature: −25°C to +70°C; storage: −40°C to +85°C
• Dimensions: 54mm (W) × 90mm (H) × 60mm (D); net weight: 192g
• Mounting: Horizontal on DIN rail TS 35
• Connection method: PUSH IN with actuator (input and output)
• Residual ripple: < 50mVss at nominal voltage, full load
• Ramp-up time: ≤100ms; capacitive load: unrestricted
• Protection degree: IP20; housing: plastic with protective insulation
• Approvals: cULus (certificate no. E258476); RoHS compliant with exemptions 6c, 7a, 7cI
