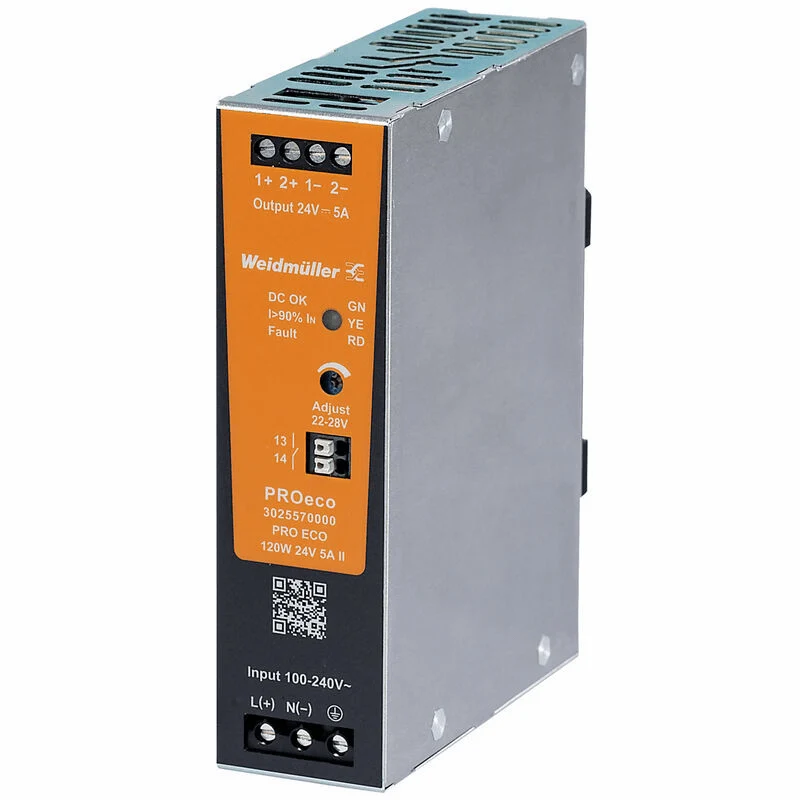

Weidmuller 3025570000 PRO ECO 120W 24V 5A Power Supply DIN Rail

The Weidmuller PRO ECO 120W 24V 5A (2nd generation, PROeco) is a compact DIN-rail switch-mode power supply for automation applications. It delivers a regulated 24 V DC output at 120 W (5 A) with wide-range AC and DC input, high efficiency and a three-colour status LED that simplifies service and integration. The narrow 35 mm housing suits space-constrained and flat control cabinets, and the unit is compatible with DC UPS, electronic load monitoring and diode modules for building power-management systems.

Technical specifications:

• Weidmuller order number: 3025570000
• Type: PRO ECO 120W 24V 5A II
• Output: 24 V DC, 120 W, 5 A (adjustable 22 to 28 V)
• Continuous output current: 3.125 A at 70 C
• Input: 85 to 264 V AC (rated 100 to 240 V AC), 45 to 65 Hz; 110 to 370 V DC
• Efficiency: up to 90.1% at 230 V AC
• Connection: screw terminals
• Mounting: TS 35 DIN rail
• Protection: IP20, short-circuit and overload protection, protection class I (PE)
• Input/output insulation: 4 kV
• Parallel operation: up to 3 units
• Status: three-colour LED (green = operating voltage OK), floating signal contact
• Operating temperature: -25 to +70 C (storage -40 to +85 C)
• Dimensions: 35 x 130 x 100 mm (W x H x D)
• Weight: 510 g
• Approvals: cURus / cULus (UL E255651, E258476), RoHS compliant
