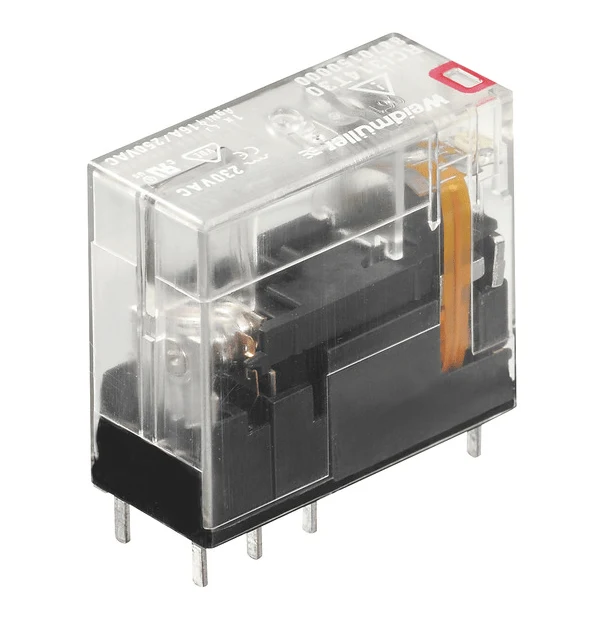

Weidmuller 8869860000 RCI314730 Relay 1CO 230V AC 16A

The Weidmuller 8869860000 RCI314730 is a pluggable DIN rail relay with 1CO contacts, 230V AC coil voltage, and 16A contact current rating. Designed for use with a compatible Weidmuller relay socket for tool-free relay replacement without disturbing field wiring.

Technical specifications:

• Part number: 8869860000
• Model: RCI314730
• Contact configuration: 1CO
• Coil voltage: 230V AC
• Contact current: 16A
• Contact voltage: up to 250V AC
• Mounting: Pluggable into relay socket (DIN rail)
• Standard: IEC 61810-1

Applications:

• Switching control signals in PLC output and relay circuits
• Voltage and current isolation between control and field circuits
• Industrial automation relay outputs in machine panels

Also known as: Weidmuller 8869860000, RCI314730, RCI relay 230V AC 1CO, Weidmuller 1CO relay 230V AC.
