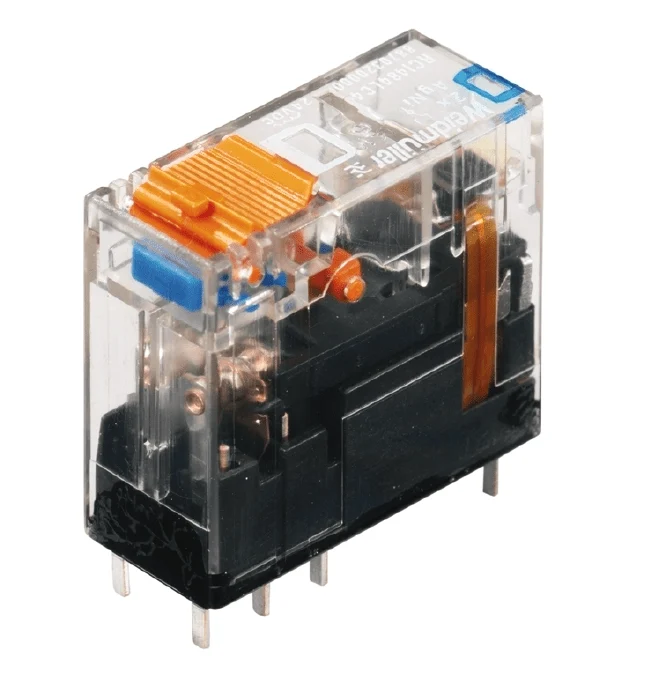

Weidmuller 8870350000 RCI484R24 Relay 2CO 24V AC 8A

The Weidmuller 8870350000 RCI484R24 is a pluggable DIN rail relay with 2CO contacts, 24V AC coil voltage, and 8A contact current rating. Designed for use with a compatible Weidmuller relay socket for tool-free relay replacement without disturbing field wiring.

Technical specifications:

• Part number: 8870350000
• Model: RCI484R24
• Contact configuration: 2CO
• Coil voltage: 24V AC
• Contact current: 8A
• Contact voltage: up to 250V AC
• Mounting: Pluggable into relay socket (DIN rail)
• Standard: IEC 61810-1

Applications:

• Switching control signals in PLC output and relay circuits
• Voltage and current isolation between control and field circuits
• Industrial automation relay outputs in machine panels

Also known as: Weidmuller 8870350000, RCI484R24, RCI relay 24V AC 2CO, Weidmuller 2CO relay 24V AC.
