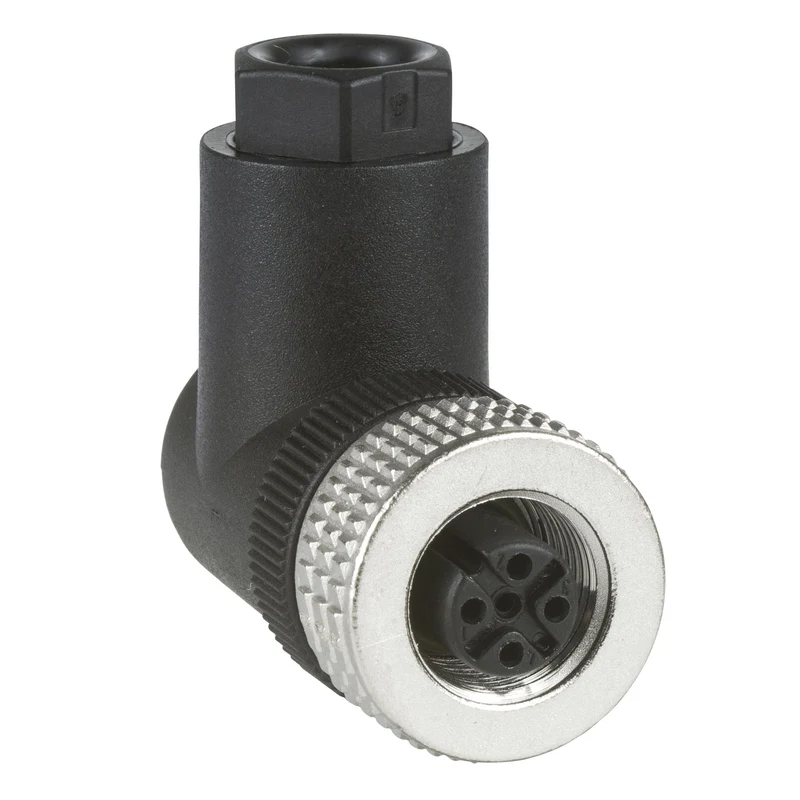

XZCC12FCM40B Telemecanique M12 Female 4-Pin Elbow Connector Pg7

The Telemecanique XZCC12FCM40B is an M12 female connector with 4-pin configuration, 90-degree elbow body, and cable gland Pg7. It is designed for use with the XCK series limit switches and compatible M12-connected sensors, providing a robust and compact field-wireable connector for industrial automation applications.

• Gender: female
• Thread: M12
• Pins: 4
• Orientation: 90 degrees (elbowed)
• Cable entry: Pg7 cable gland
• Contact type: screw termination
• Compatible with: XCK series limit switches with M12 connector entry, other M12-pin sensors
• Suitable cable diameter: 3.5 to 6mm (Pg7 range)

The 90-degree elbow body keeps the cable routed parallel to the mounting surface, reducing strain on the connector and allowing installation in space-constrained locations. Catalog number: XZCC12FCM40B.
