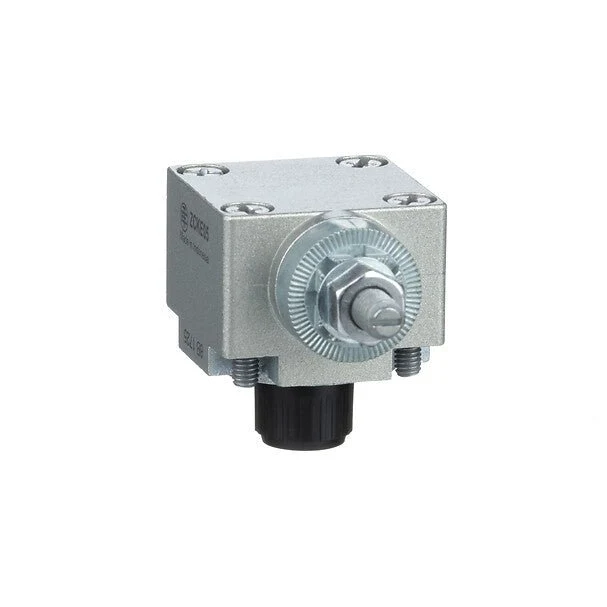

ZCKE05 Telemecanique Limit Switch Head without Lever Left and Right Actuation

The Telemecanique ZCKE05 is a modular limit switch head for the ZCK series without an actuating lever, configured for left and right side actuation. Without a lever, this head is actuated directly by the cam or dog contacting the actuating plunger or roller stub on the side face, making it suitable for compact installations where a lever would interfere with adjacent components or where a very short actuation stroke is required.

• Series: ZCKE (modular limit switch head)
• Actuator: no lever, side actuation (left and right)
• Actuation direction: lateral (left or right)
• Compatible bodies: XCKN, XCKP, and ZCK modular limit switch bodies
• Mounting: snap-fit onto modular body

The ZCKE05 is used where available space does not permit a lever arm, or where the machine design provides a direct cam face that presses against the actuator plunger. Replacing the head in the field requires no rewiring of the switch body. Catalog number: ZCKE05.
